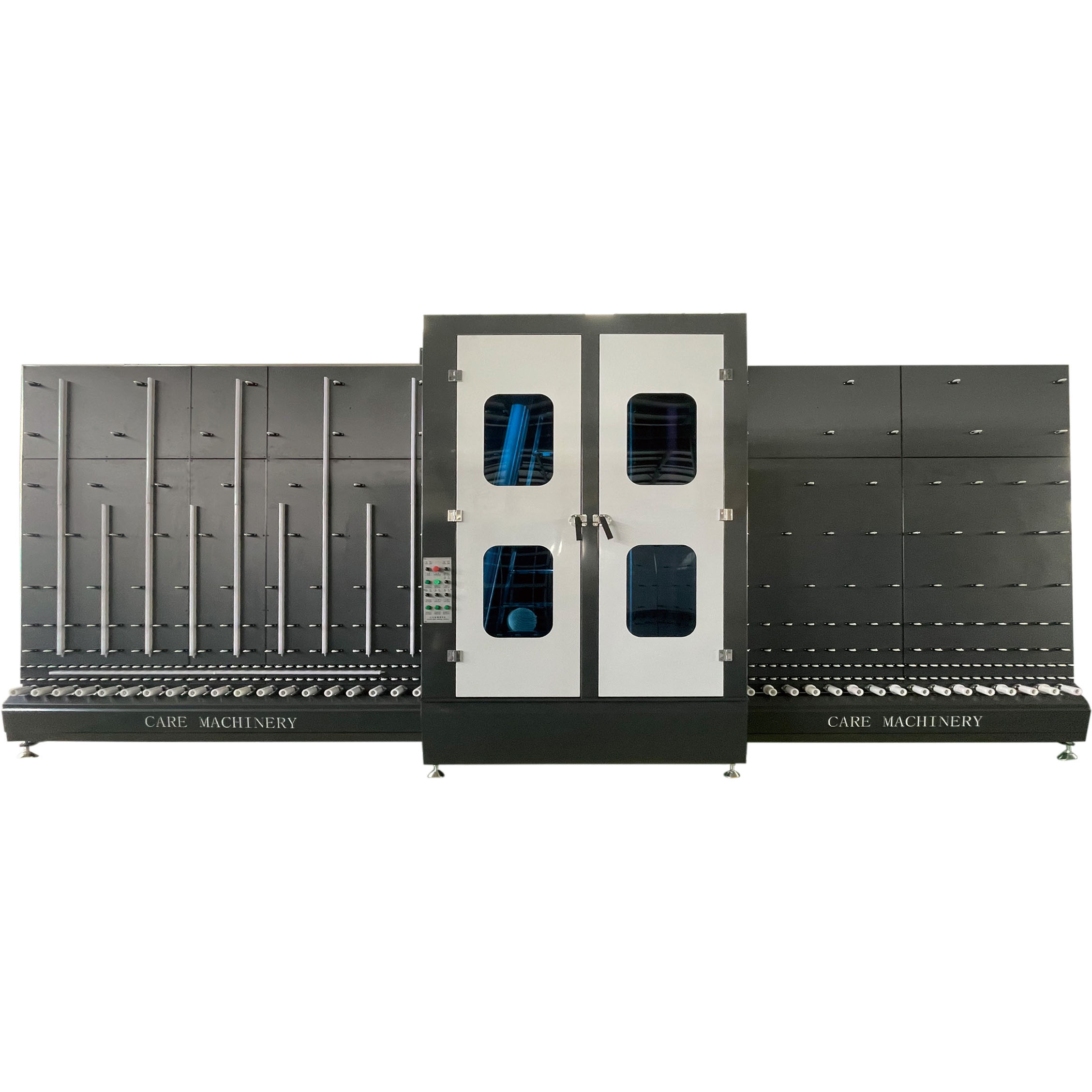

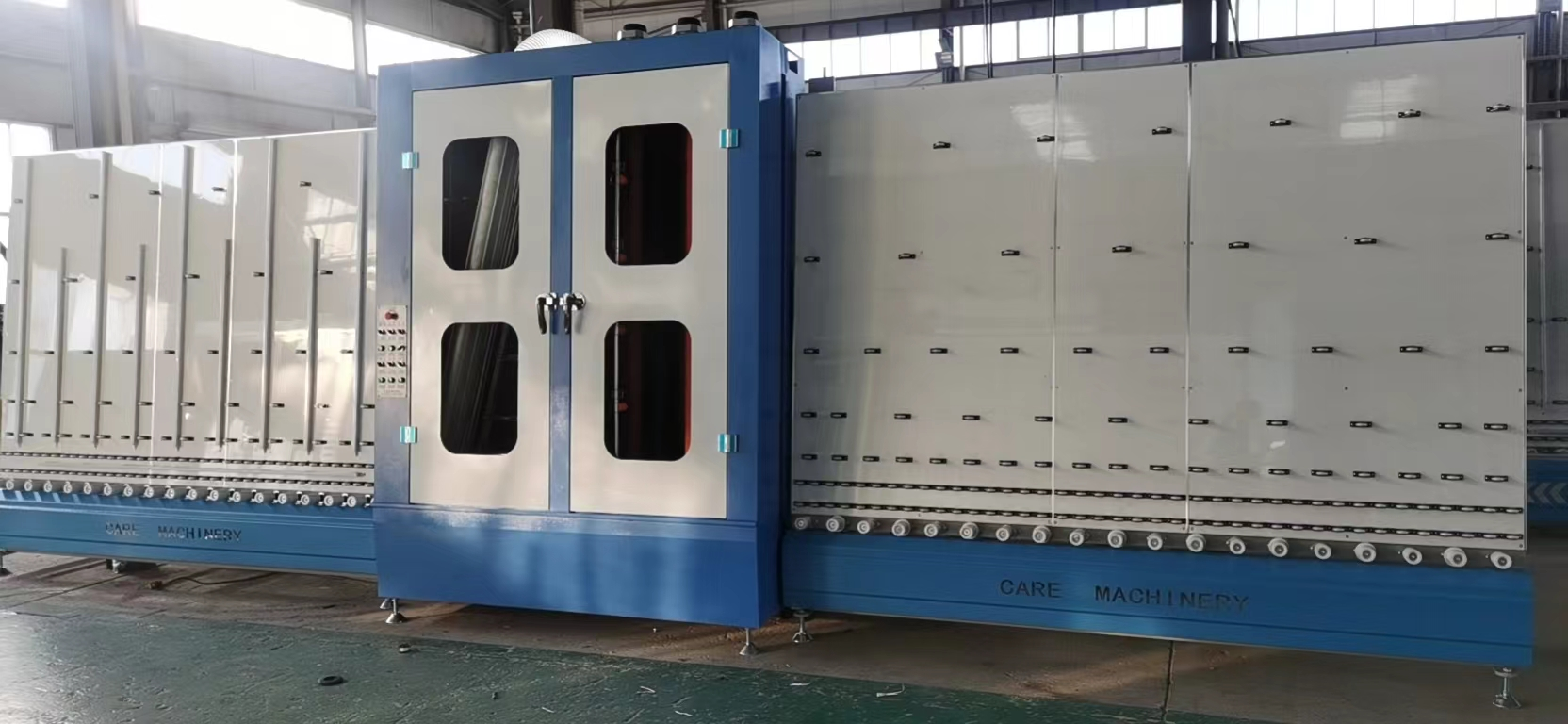

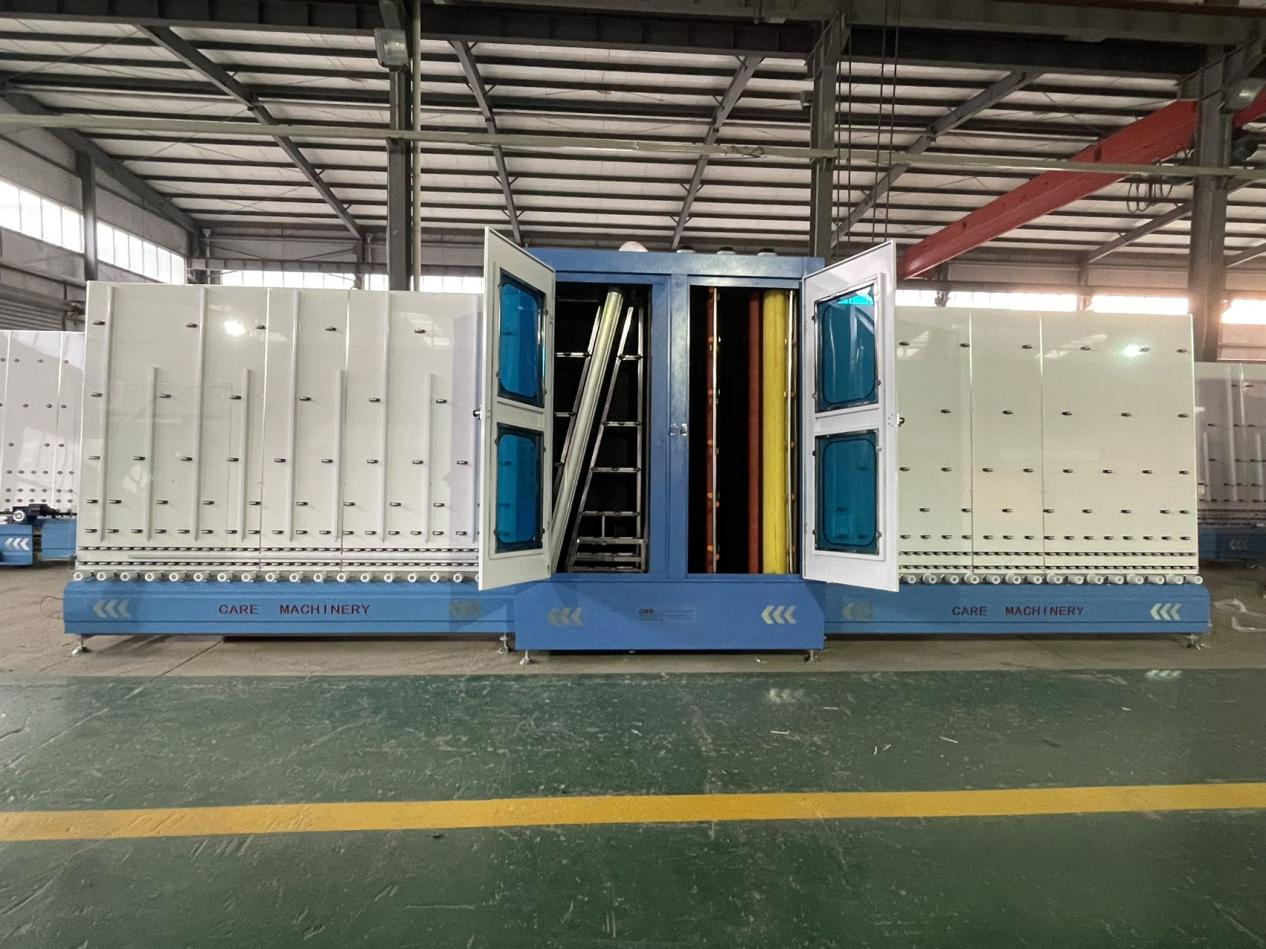

Vertical glass washing machine 1825

描述

Vertical glass washing machine 1825







Function:

1, Europe design concept, easy and intelligent operation.

2, Schneider electric parts，ensure stable operation and long service life.

3,Designed for high quality glass washing, such as reflective glass, Low-E glass, tempered glass and laminated glass.

4,Large glass processing scale with high speed, various models and customization available.

5, With functions of glass transferring, glass washing, glass drying and glass checking.

6,Three pairs of high quality washing brushes, suitable for Low E glass washing.

7,0.08-0.1mm soft brushes.

8, Oil-free lubrication and water-proof bearing.

9, Washing section and water tank made of stainless steel.

10,Water heating device equipped.

11,High pressure wind engine, inner circulating with warm air.

12,Speed of three sections individually adjusted.



Parameter:



Power supply		380V 50Hz 3P (or customized)
Total power		10KW
Process glass scale	Max glass sheet	1800×2500mm
	Min glass sheet	200×400mm
	Original glass thickness	3~19mm
Working speed	Washing speed	0-12/min



Note: smaller processing scale available or customized.

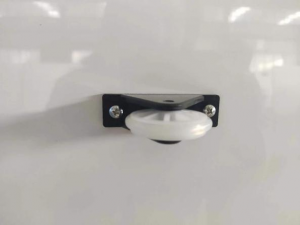

UV Plate and silicone transmission wheel

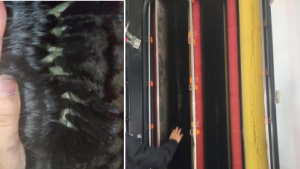

0.08-0.1mm soft brush

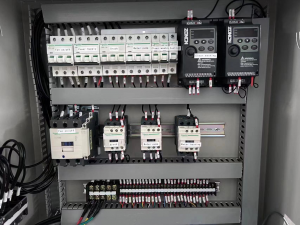

All electric component we use are Schneider

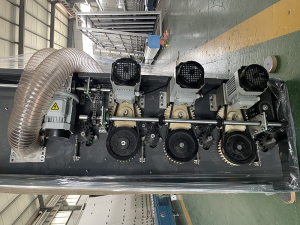

Separate motor for each pair of brushes

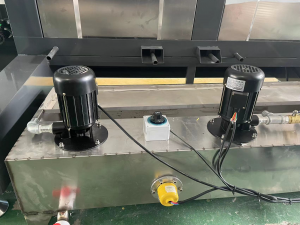

Double water pump circulation
